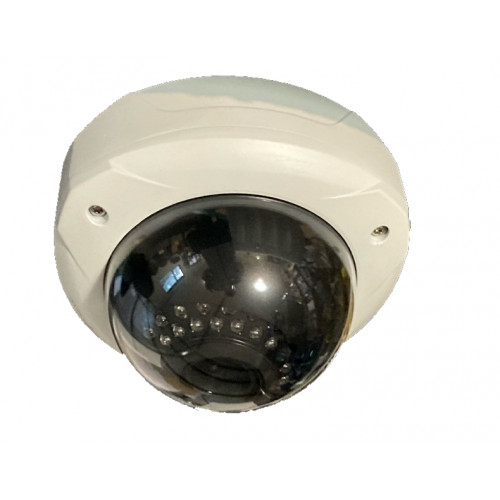

The 2MP camera comes with 2.8-12mm varifocal lens, capable of being used in differrent
conditions. Its ONVIF protocal would allow the camera being used in many NVRs
and a NAS.

The POE standard is 802.3at, more compatible to Dahua NVR systems.

Features

1920X1080P resolution line scanning and real-time output.

high performance and powerful programmable media processor, built-in (ARM9+DSP)
and high speed video coordinative processor which is stable, reliable and with
lower power consumption

Optimized H.264 Main Profile compression algorithm, high compression ratio and
high quality image; convenient to realize a transmission of HD images on a narrow
band, thus it can save the storage space; support triple bit streams

multiple audio compression algorithms e.g. G.726, G.711 and ADPCM, providing
clearer voice

Built in Web Server, through the IE browser easy to realize the remote control
Settings prison see operation

auto recovery in abnormality and auto reconnection in network breakdown

Specifications

Camera Pixel 1/2.8"2.0M SONY COMS; ICR

Lens 2.8-12mm

Electronic shutter 1/25s-1/30,000s

Low Lux 0.1Lux@F1.6(Color),0.01Lux@F1.6(B/W IR on)

Auto iris N/A

Video parameter Saturation, brightness, contrast ratio and color tone can be
adjusted by customer end or IE explorer

IR Properties Dual filter day / night: automatic switch, linkage switch

IR Light 30pcs 5F IR LEDS, IR Distance: 30M

Audio-video coding parameters Compression H.264/MJPEG,Mobile phone,ONVIF,UPNP;

Video bit rate 0.1M-16Mbps, customized

Bit stream type video stream

Triple bit streams Support

Image Video resolution 1920X1080P

Video flame rate PAL: 1-25 frames/second, NTSC: 1-30 frames/second

Heartbeat mechanism Support

Password protection Multi-level protection on password

Intellectual alarm Mobile detection, video shielding, video loss, network breakdown,
abnormality in storage

Basic functions One-key reset, password protection, watermark technology

Network port 1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port

Serial port N/A

Alarm input N/A

Alarm output N/A

Wireless network WIFI N/A

Wireless encryption protocol N/A

Cell phone monitor Support

3G network N/A

POE 802.3at

Power supply DC12V/1.5A

Power consumption <6W

Working temp -10 degress ~ +55 degrees

Working humidity 10 ~ 85%

Weight 650g
