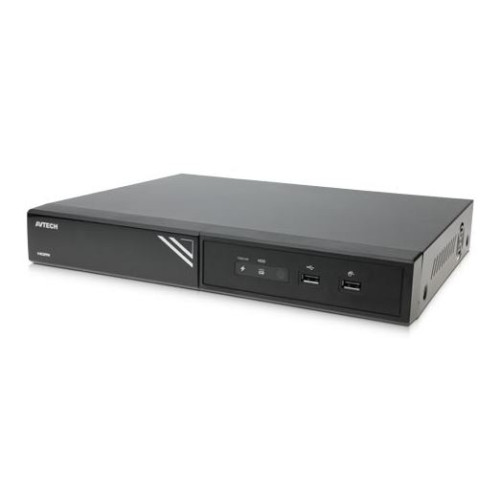

AVTECH 16CH 5MP XVR / DVR AVZ2017AV
Features
Free P2P Cloud EaZy Networking
~ Cloud EaZy Networking available to connect this
device to Internet automatically in three steps with
our free mobile app, EagleEyes.
~ The “Buddy” feature to share the device access
permission to other people.
~ Device login / out notifications reported.
Push Video & Push Status -
Active Event Notification with EagleEyes App
~ Push Video to send instant notifications for an alarm
event when an alarm device is connected to the
recorder or the camera which supports external alarm
device connection.
~ Push Status to send instant notifications for system
events, such as video loss or HDD data removal.
Pentabrid Video Input
16 channels of IP / TVI / CVI / Analog HD / 960H video
input, within which IP channels are up to 12 channels
Up to 5MP display & recording
Spot Monitor
~ In addition to the main display via the HDMI output, you
can assign a secondary display to show live view, call
monitor or event monitor.
Specifications
~ Video
Video System NTSC / PAL (auto detection)
Video Compression Format H.265
Video Signal IP / TVI / CVI / Analog HD / 960H
Video Input 16 pentabrid channels (IP / TVI / CVI / Analog HD / 960H),
within which IP channels are up to 12 channels
Video Input Interface Analog Mode Composite video signal 1 Vp-p 75Ω BNC
IP Mode Ethernet, 10/100 Base-T
Video Output BNC YES (Spot Monitor supported)
VGA YES (Spot Monitor supported / unavailable when video display is set to 4K2K)
HDMI YES (4K2K display)
Video Resolution Analog Mode 5MP / 5MLITE / 4MP / 4MLITE / FHD (1080P) / HD / 960H / Frame / CIF
IP Mode 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
~ Record & Backup
Max. Recording Rate
Analog Mode
Up to 96 IPS @ 5MP
Up to 128 IPS @ 4MP
Up to 240 IPS @ FHD (1080P)
IP Mode
(12 channels)
UP to 180 IPS @ 2592 x 1944 (5MP)
UP to 288 IPS @ 2048 x 1536 (3MP)
UP to 360 IPS @ 1920 x 1080
Recording Mode Manual / Timer / Motion / Alarm / Remote
Playback Channel 16CH
Quick Search Time / Motion / Alarm search mode
Backup Device USB 2.0 drive / Network
Regular Backup YES
~ Audio
Audio Input 4
Audio Output 1 (Mono)
~ External I/O
RS485 YES
Alarm In 4
Alarm Out 1
~ General
Hard Disk Storage 14TB SATA HDD x 2 or
14TB SATA HDD x 1 + external disk array x 1 connected to the recorder
via the eSATA interface
SATA Interface YES
eSATA Interface Expandable with a SATA to eSATA cable
Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
USB Mouse Control YES
Motion Detection Area 16 × 12 grids per channel
Motion Detection Sensitivity 3 adjustable parameters for accurate detection
Event Notification Push Video / Push Status / FTP / E-Mail
Event Pop-up & Preview YES
Scenario Setup YES
Picture Zoom 2X digital zoom
PTZ Control YES
Key Lock (Password Protection) YES
User Level 4 user levels for different access privilege
Video Loss Detection YES
~ General
Camera Title Supports up to 25 letters
Video Adjustable Hue / Saturation / Contrast / Brightness
Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving YES
Power Source (±10%) 12V / 4A
Operating Temperature 10ºC ~ 40ºC (50ºF ~104ºF)
Operating Humidity 10% ~ 85%
Dimensions(mm)** 319.5 x 254.9 x 52
Net Weight (kg) 1.7
~ Network
Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
Network Protocol TCP/IP, PPPOE, DHCP and DDNS
~ Remote Surveillance from PC
Compatible Operating System Windows & MAC
Compatible Program Web Browser: Windows Edge, Microsoft Internet Explorer, Google Chrome,
Mozilla Firefox & Safari
CMS Lite: 32CH central management software for Windows OS
Max. online users 40
Web Transmitting Compression Format H.265
Network Live Audio YES
Remote Event Download & Playback YES
~ Mobile Surveillance
App EagleEyes
Compatible Devices iOS & Android devices
Push Video YES (16 channels)
Push Status YES
~ Others
EaZy Networking YES
IVA YES (4 channels)
Spot Monitor Support YES (VGA & Composite)
DCCS Support YES
AVTECH Free DDNS service YES
Privacy Mask YES
Multiplex Operation Live display / record / playback / backup / network operations
System Recovery System auto recovery after power failure
Optional Peripherals HDMI Matrix (HDM02) / USB Joystick (AVX102) /
SATA to eSATA cable (PWSC07F120200)
Certification CE / UL (Power Adapter)
